MT-7603
Fiber Optical Power Meter
369 AZN
Vəziyyəti : Yeni
Anbarda qalan : 10

  • Supports dark environment Operation
  • Memory capacity of 39 data
  • FC/PC interface
  • Modulation Detection
  • Wavelength measurement calibration
  • New REF User-defined
  • Extra User Friendly Design
  • Supports dark environment Operation

    • Comfortable LCD backlight display.

    Memory capacity of 39 data

    FC/PC interface

    • 2.5mm FC interface supports connectors, FC-LC hybrid adaptor and SC adaptor are available for option

    Modulation Detection 2 kHz / 1 kHz / 270 Hz

    Wavelength measurement calibration

    • As per standard light source output wavelength, adjust accuracy, adjust range ±3dB.

    New REF User-defined
    Can store the current laser source as a new reference value.

    Extra User Friendly Design

    • Auto power off, low battery indication, Multi unit selection:dBM, mW, uW, nW, Protective rubber boot, soft protective case.

Model no.MT-7603
Detector TypeInGaAs
Optical ConnectorFC / PC
Measurement Range+8~ -70dBm

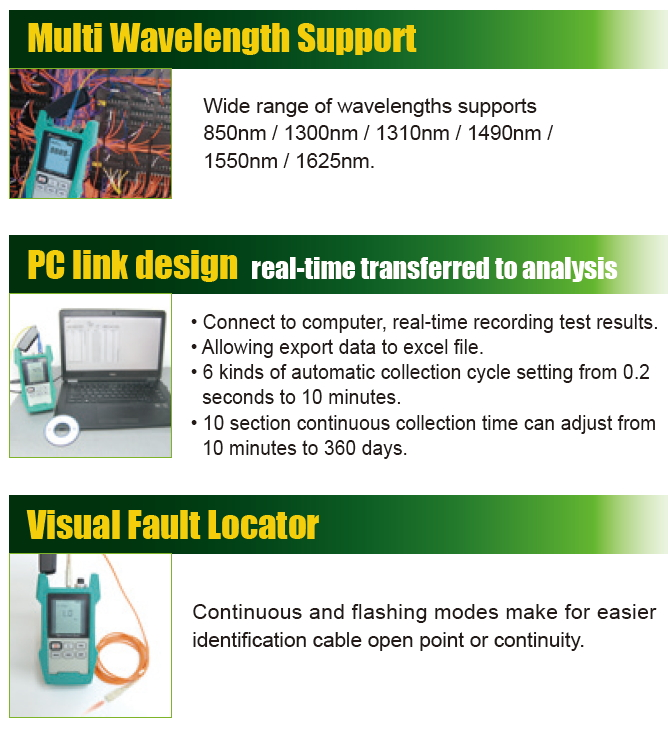

Measurement Wavelengths850,1300,1310,1490,1550,1625nm
resolution0.01dB
Accuracy±0.2dB
Measurement Linearity±2.0%
Display Resolution+8~ -60dBm: 0.01dB ; -60~ -70dBm: 0.1dB
Power Display UnitsdBm, mW, uW, nW,
Commuication connectorUSB
Data storage39 group
Modulation Detection270Hz,1kHz, 2kHz
Visual Fault Locator1mW
Autopower Off10 min (can be cancelled)
Low Battery WarningLow battery energy
Battery Capacity> 160 hours
Power SourceAA/LR6 1.5V X2 PCS (not included)
Size170mm×97mm×38mm
Weight330g
Optional AccessoryLC adaptor (5MT-7601-LC), SC adaptor (5MT-7601-SC)
Individual PackageColor box
